Mariners Yacht & Ship Brokerage, Inc.
34551 Casitas Place
Dana Point, California, US, 92629
Tel:949-429-2628

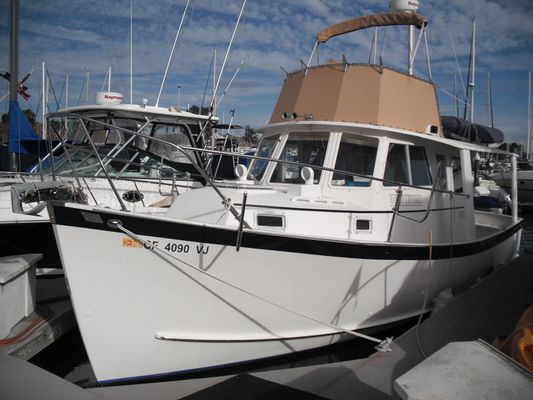

Ontario Yachts Trawler - main image

1985 Ontario Yachts Trawler

location icon Dana Point, California
Year 1985
Length 33 ft
Price
$71,000

PRISTINE One-of-a-Kind Family Trawler!!

The Owner is a long-time experienced boater that has moved on to larger boat.

Bottom Painted in March 2020

New Window Covers in 2020

New Salt Water Pump in 7/2020

7'7" ZODiAC  230 Aero Dinghy (2016)

THIS VESSEL WILL NOT LAST VERY LONG!!  MUST SEE!!

Specifications

Year Built 1985
Category Power
Length Overall 32'6 ft
Beam 11'6 ft
Cabins 2
Electrical System 110 V
Double Berths 1
Construction Fiberglass
Min Draft 3'2 ft
Drive Type V
Engines 1
Total Engine Power 110 hp
Fuel Tanks 1
Fuel Tank Cap. 93 gal
Fuel Tank Mat. Stainless Steel
Water Tanks 1
Water Tank Cap. 66 gal
Water Tank Mat. Other
Holding Tanks 1
Holding Tank Cap. 42 gal
Holding Tank Mat. Other
Displacement 11,000 lb
Windlass Electric

Engine 1 Specifications

Make: VOLVO
Model: TMD 40A
Drive Type: V
Fuel: Diesel
Engine Power: 110hp
Type: Inboard
Year: 1985
Engine Hours: 3200
Engine Location: Center
Accommodations

- 4 Adult Sleeping Capacity

- Forward Cabin--double berth with filler

- Main Cabin Dinette--convertible to double berth or two separate settees

- 4 cast aluminum opening ports on forward cabin

- Tempered glass sliding windows with screens

- Teak and holly sole

- Teak cabinets and accents

- Convertible main cabin configuration (dinette or settee)

- Double dome lights and fluorescent lighting in main cabin and galley

- Reading lights

- Engine room dome light







HEAD

-Marine Toilet

-Molded vanity with stainless steel sink

-Mirror & Ample storage

- Hot & Cold water pressure system with back-up hand pump

-Shower with separate shower sump & pump

Engines & Steering

ENGINE

- Volvo TAMD 6-cylinder turbo-charged, aftercooled marine diesel with a Borg-Warner transmission, the engine produces 117 HP at the prop.

- Fresh water cooled with heat exchanger

- Water cooled exhaust system

- C.A.V. fuel/water separator

- Seawater strainer

- S.S. propeller shaft

- 19" x 11--e blade bronze propeller

- Morse engine and transmission controls

- 50 ampere marine alternator

- Natural and forced air ventilation to engine compartment



 STEERING SYSTEM

- Wagner single station hydraulic steering system

- Emergency tiller

- Rudder: molded fiberglass with stainless steel shaft and longitudinal stiffeners

Electrical & Instruments

- D.C. Circuit breaker distribution panel with 9 breakers

- A.C. Circuit breaker distribution panel

- 110 volt shore power including 50' shore power line (30 amp rated), 3 duplex receptacles (GFI protected)

- 1-170 amp heavy duty marine battery for house lights etc.

- 1-70 amp marine battery for engine starting

- Heavy duty battery switch with alternator disconnect

- Battery charger



INSTRUMENTS

- Warning lights and audible alarms for engine operation

- Hour meter

- Fuel gauge

- Electric horn



LIGHTS

Exterior:

- IMCO Approved running lights

- Brass porch light

Interior:

- Double dome lights and fluorescent lighting in main cabin & galley

- Reading lights

- Engine room dome light



Galley

- 1 Large refrigerator & freezer

- 1 Deep stainless steel sink

- 3 Burner propane stove/oven

- Dry storage lockers

- Dish and cutlery storage

- 12 volt electric refrigeration system

-Hot & cold pressure water system with back up hand pump

Hull & Deck

HULL

Single unit hand lay-up glass alternating layers of mat and roving

- Cored with "Klegecell" closed-cell foam for additional strength

- Molded splash rails with stainless steel cap

- All bronze ball valves and thruhulls



DECK

- Welded double stainless steel bow pulpit

-Vinyl coated 7 x 19 stainless steel double lifelines

- Stainless steel stanchions and bases

- Stainless steel bowsprit with double anchor rollers

-Swim Ladder

-Swim Platform



FLYBRIDGE STEERING STATION

Complete upper steering station, including molded FRP fly-bridge and deck box,, Wagner dual station hydraulic steering system, dual Morse engine and transmission controls, cushions, ladder to upper station, upper statin lifelines, fixed instrument window



Standard Hardware

- Manual bilge pump mounted in cockpit

- Electric auto-start bilge pump mounted in engine compartment

- Electric windshield wiper

- Teak handrails on cabin top

- 6 Mooring fairleads

- 4 Mooring cleats

- Bronze deck hawse pipe

- Teak stub mast for navigation lights

- Teak flag pole with socket

- Fire extinguisher



Disclaimer

Mariner’s Yacht & Ship Brokerage, Inc. offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. All speeds, measurements, capacities, consumption, etc. may be approximate or estimated.  Specifications provided for information only.  Data was obtained from sources believed to be reliable and is not guaranteed by owner or brokers.  Buyer assumes the responsibility to ascertain the correctness of all data contained herein and otherwise provided and must instruct his agent and surveyors to confirm all details for accuracy prior to purchase. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All photographs, descriptions and technical data are the sole property of Mariner’s Yacht & Ship Brokerage, Inc. and may not be copied, reproduced or redistributed in part or in whole by any method without the express written consent of the Mariner’s Yacht & Ship Brokerage, Inc.

Owner's personal items are NOT included.
